Embossing & Stamping Press

Suit for thick and hard wood and special plastic etc. Hot stamping work. Such as various kind of ball, gloves and leather grained design.

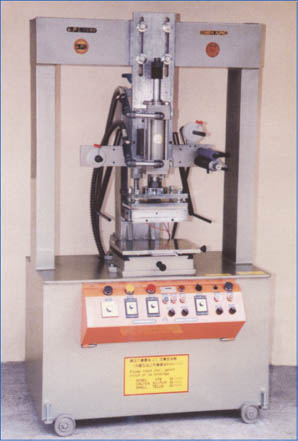

CJ-909 Embossing & Stamping Press

Voltage PhaseAC 220/380 volts
Heating 1600 W,50~60HZ
Size 820×1060×1840mm
Net Weight 938kg
Packing Size 940×1180×2040mm
Packing Weight 1085kg
Work Area 200×260mm
Utmost Pressure 6000kg
Tempreature 0º-400℃
Max. Stroke 0~120mm
Work Space 0~250mm
Automatic Roll Foil 0~900mm
Time Control 0~30sec
FEATURES:

Use new developed double hydraulic assistant system and steel nature arch frame and hydraulic make the pressure high instantly, have the effect of even the heating. To keep the grained deepth forever and clear not changed the shape.

Sample
